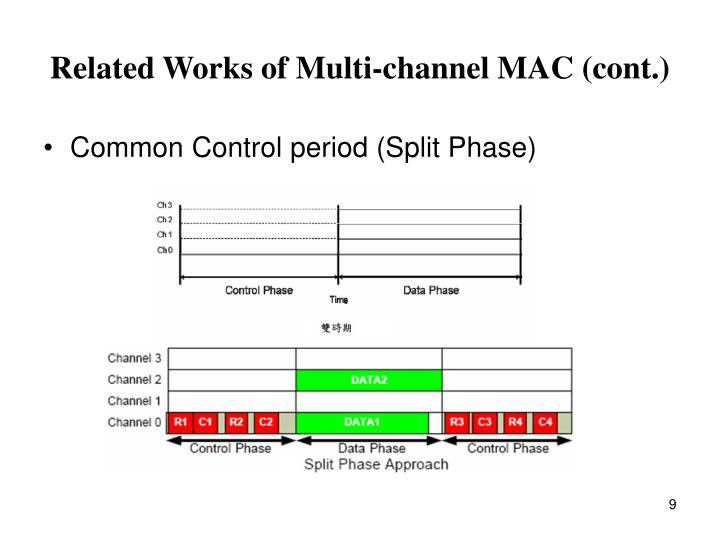

New protocols are needed for controlling access to the physical medium. The unique properties of the ad hoc networks make the design of a media access control (MAC) protocol more challenging. This paper sets on giving a brief outline of the MAC protocols for ad hoc networks, focusing on contention-based algorithms with reservation and scheduling.

WirelessHART is a secure and reliable communication standard for industrial process automation. The WirelessHART specifications are well organized in all aspects except security: there are no separate specifications of security requirements or features. Rather, security mechanisms are described throughout the documentation. This hinders implementation of the standard and development of applications since it requires profound knowledge of all the core specifications on the part of the developer.

In this paper we provide a comprehensive overview of WirelessHART security: we analyze the provided security mechanisms against well known threats in the wireless medium, and propose recommendations to mitigate shortcomings. Furthermore, we elucidate the specifications of the Security Manager, its placement in the network, and interaction with the Network Manager.

1. HART Communication Foundation (HCF). 9390 Research Blvd., Suit I-350 Austin TX 78759 USA. http://www.hartcomm2.org/index.html.Google Scholar
2. The ISA100 Standards: Overview & Status. http://www.isa.org/source/ISA100.11a_Release1_Status.ppt.Google Scholar
3. Network Management Specification, HCF_SPEC-085, Revision 1.1. HART Communication Foundation, May 2008.Google Scholar
4. TDMA Data Link Layer Specification, HCF_SPEC-075, Revision 1.1. HART Communication Foundation, May 2008.Google Scholar
5. Wireless Command Specification, HCF_SPEC-155, Revision 1.1. HART Communication Foundation, May 2008.Google Scholar
6. WirelessHART Device Specification, HCF_SPEC-290, Revision 1.1. HART Communication Foundation, May 2008.Google Scholar
7. IEC approves WirelessHART. Control Engineering, Vol. 55 Issue 10 Pages 34-34, October 2008.Google Scholar
8. C. Alberts and A. Dorofee. Managing Information Security Risks: The OCTAVE Approach. Addison Wesley, 09 July 2002. Google Scholar
9. A. Bogdanoy. Multiple-differential side-channel collision attacks on aes, lecture notes in computer science. 10th international workshop on Cryptographic Hardware and Embedded Systems, 5154(2):30-44, 2008. Google Scholar
10. L. Buttyan and J.-P. Hubaux. Security and Cooperation in Wireless Network. Cambridge University Press, 2007. Google Scholar
11. J. R. Douceur. The sybil attack. 1st International workshop on Peer-To-Peer Systems (IPTPS), March 2002. Google Scholar
12. M. Dworkin. Recommendation for Block Cipher Modes of Operation: The CCM Mode for Authentication and Confidentiality. NIST Special Publication 800-38C, May 2004. Google Scholar
13. Y.-C. Hu, A. Perrig, and D. B. Johnson. Wormhole attacks in wireless networks. IEEE Journal on Selected Areas in Communications, 24(2):370-380, February 2006. Google Scholar
14. A. N. Kim, F. Hekland, S. Petersen, and P. Doyle. When hart goes wireless: Understanding and implementing the wirelesshart standard. IEEE International Conference on Emerging Technologies and Factory Automation, pages 899-907, September 2008.Google Scholar
15. Y. W. Law, M. Palaniswami, L. V. Hoesel, J. Doumen, P. Hartel, and P. Havinga. Energy-efficient link-layer jamming attacks against wireless sensor network mac protocols. ACM Transactions on Sensor Networks (TOSN), 1(5):71-80, February 2009. Google Scholar
16. T. Lennvall, S. Svensson, and F. Heklan. A comparison of wirelesshart and zigbee for industrial applications. IEEE International Workshop on Factory Communication Systems, pages 85-88, May 2008.Google Scholar
17. C. Leung. Evaluation of the undetected error probability of single parity-check product codes. IEEE Transactions on Communications, 31(2):250-253, 1983.Google Scholar
18. A. Liu and P. Ning. Tinyecc: A configurable library for elliptic curve cryptography in wireless sensor networks. International Conference on Information Processing in Sensor Networks, 2008. IPSN '08, pages 245-256, April 2008. Google Scholar
19. R. C.-W. Phan. Impossible differential cryptanalysis of 7- round aes. Information Processing Letters, 91(1):33-38, 2004. Google Scholar
20. H. K. D. Sarma and A. Kar. Security threats in wireless sensor networks. IEEE A&E Systems Magazine, June 2008.Google Scholar
21. W. Simpson. PPP in HDLC Framing, RFC 1549. IETF, Network Working Group, Fremont, California 94538 USA, December 1993.Google Scholar
22. J. Song, S. Han, A. K. Mok, D. Chen, M. Lucas, and M. Nixon. Wirelesshart: Applying wireless technology in real-time industrial process control. Real-Time and Embedded Technology and Applications Symposium, 2008(RTAS-08), pages 377-386, April 2008. Google Scholar
23. W. Stallings. Data and Computer Communications, pages 277-282. Prentice Hall, eighth edition, 2006. Google Scholar
24. H. F. Tipton and M. Krause. Information Security Management Handbook, pages 1129-1135. Auerbach Publications, sixth edition, 2007. Google Scholar
25. H. Wang and Q. Li. Efficient implementation of public key cryptosystems on mote sensors. In Proceedings of International Conference on Information and Communication Security (ICICS), pages 33-38, 2004. Google Scholar
26. H. Wang, B. Sheng, and Q. Li. Elliptic curve cryptography-based access control in sensor networks. International Journal of Security and Networks, 1(3/4):127- 137, 2006. Google Scholar
27. D. Whiting, R. Housley, and N. Ferguson. Counter with CBC-MAC (CCM), RFC 3610. IETF, Network Working Group, Fremont, California 94538 USA, September 2003. Google Scholar

1. Security considerations for the wireless HART protocol

Login options

Check if you have access through your login credentials or your institution to get full access on this article.

• Published in

  1765 pages

  In-Cooperation

  Publisher

  IEEE Press

  Publication History

  Qualifiers

  • ARTICLE

  Funding Sources

• Article Metrics

  • Total Citations
    View Citations
  • Total Downloads

  • Downloads (Last 12 months)0
  • Downloads (Last 6 weeks)0

  Other Metrics

Digital Edition

View this article in digital edition.

The HART Communication Protocol (Highway Addressable Remote Transducer) is a hybrid analog+digital industrial automation open protocol. Its most notable advantage is that it can communicate over legacy 4–20 mA analog instrumentation current loops, sharing the pair of wires used by the analog-only host systems. HART is widely used in process and instrumentation systems ranging from small automation applications up to highly sophisticated industrial applications.

According to Emerson,^[1] due to the huge installation base of 4–20 mA systems throughout the world, the HART Protocol is one of the most popular industrial protocols today. HART protocol has made a good transition protocol for users who wished to use the legacy 4–20 mA signals, but wanted to implement a 'smart' protocol.

The protocol was developed by Rosemount Inc., built off the Bell 202 early communications standard in the mid-1980s as a proprietary digital communication protocol for their smart field instruments. Soon it evolved into HART and in 1986 it was made an open protocol. Since then, the capabilities of the protocol have been enhanced by successive revisions to the specification.

Modes[edit]

Zip password unlocker v4.0 free download. There are two main operational modes of HART instruments: point-to-point (analog/digital) mode, and multi-drop mode.

Point to point[edit]

In point-to-point mode the digital signals are overlaid on the 4–20 mA loop current. Both the 4–20 mA current and the digital signal are valid signalling protocols between the controller and measuring instrument or final control element.

The polling address of the instrument is set to '0'. Only one instrument can be put on each instrument cable signal pair. One signal, generally specified by the user, is specified to be the 4–20 mA signal. Other signals are sent digitally on top of the 4–20 mA signal. For example, pressure can be sent as 4–20 mA, representing a range of pressures, and temperature can be sent digitally over the same wires. In point-to-point mode, the digital part of the HART protocol can be seen as a kind of digital current loop interface.

Multi-drop[edit]

In multi-drop mode the analog loop current is fixed at 4 mA and it is possible to have more than one instrument on a signal loop.

HART revisions 3 through 5 allowed polling addresses of the instruments to be in the range 1–15. HART revision 6 allowed addresses 1 to 63; HART revision 7 allows addresses 0 to 63. Each instrument must have a unique address.

Packet structure[edit]

The request HART packet has the following structure:

Preamble[edit]

Currently all the newer devices implement five byte preamble, since anything greater reduces the communication speed. However, masters are responsible for backwards support. Master communication to a new device starts with the maximum preamble length (20 bytes) and is later reduced once the preamble size for the current device is determined.

Preamble is: 'ff' 'ff' 'ff' 'ff' 'ff' (5 times ff)

Start delimiter[edit]

This byte contains the Master number and specifies that the communication packet is starting.

Address[edit]

Specifies the destination address as implemented in one of the HART schemes. The original addressing scheme used only four bits to specify the device address, which limited the number of devices to 16 including the master.

The newer scheme utilizes 38 bits to specify the device address. This address is requested from the device using either Command 0, or Command 11.

Command[edit]

This is a one byte numerical value representing which command is to be executed.Command 0 and Command 11 are used to request the device number.

Number of data bytes[edit]

Specifies the number of communication data bytes to follow.

Status[edit]

The status field is absent for the master and is two bytes for the slave. Thisfield is used by the slave to inform the master whether it completed the taskand what its current health status is.

Formats the Ontario Driver's License Number in the format A1234 - 12345 - 12345: Limits length to 1 letter and 14 numbers; Restricts input to alphanumeric characters; Inserts a -every 5 characters. What I do know is that the Ontario drivers licence contains three different ID numbers. The number in the biggest font, the Drivers Document number or DD, and lastly, the Trillium ID, the number on the back above the PDF417 code. Maryland driver's license number generator. You will just need the following details of the driver's licence. The name of the driver; The driver’s address; date of birth; The class of the license class; license holder sex; license issue date; license expiry date; The fake driver’s licence helps you get these details right away. You can create a licence for 230 nations through this Driver's License Generator.

Data[edit]

Data contained in this field depends on the command to be executed.

Checksum[edit]

Checksum is composed of an XOR of all the bytes starting from the start byte and ending with the last byte of the data field, including those bytes.

Manufacturer codes[edit]

Each manufacturer that participates in the HART convention is assigned an identification number. This number is communicated as part of the basic device identification command used when first connecting to a device. (Note the list below is non-exhaustive and deprecated (Dated Nov. 15th 1996), some of the corporations listed are now defunct and the list is constantly in flux with new manufacturers entering the market. Also, in the current version of the standard devices report ID codes in hexadecimal instead of decimal values.)^[2]
